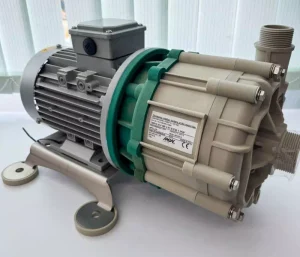

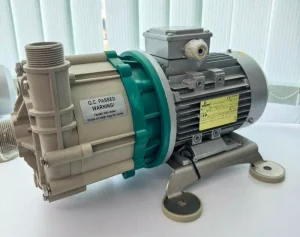

Magnetic Drive Pump 1.1kW

Spec

• Max capacity: 20 m³/h
• Max head: 18 m.
• Max temp: 80°C (176°F)
• Connection In/Out: 1 ^1/2" / 1 ^1/4" BSP Threaded
• Motor: 1.1kW (1.5HP)
• Noise: 50dB(A)
• Weight: 20Kgs.

Material & Construction

• Valute casing: WR(GFR/PP)
• Raar casing: WR(GFR/PP)
• Reas casing: WR(GFR/PP)
• Centrifugal impeller: WR(GFR/PP)
• Internal structure: R1(C/A1203)
• O-ring: V(FKM)
• IEC frame: 80B

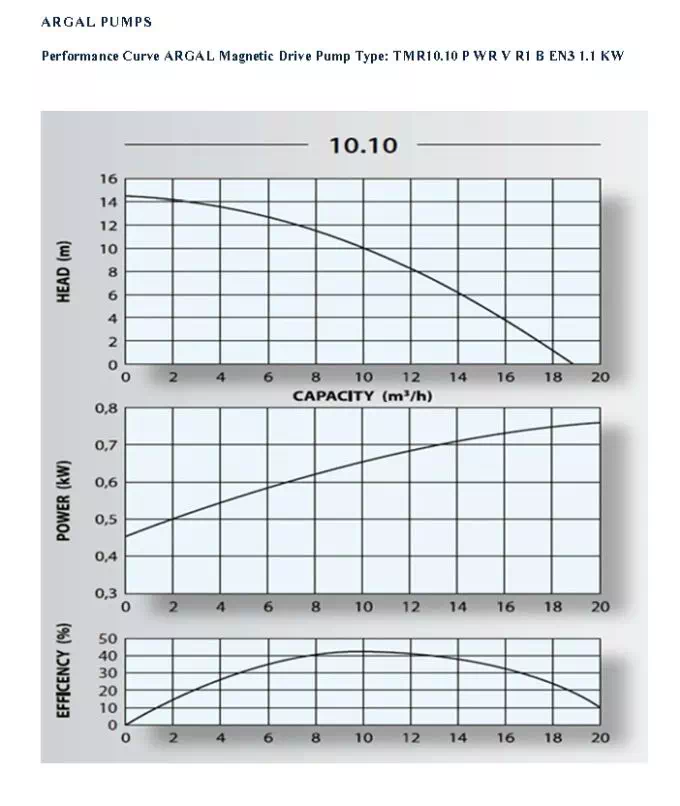

Performance Curve ARGAL Magnetic Drive Pump Type: TMR10.10 P WR V R1 B EN3 1.1 KW

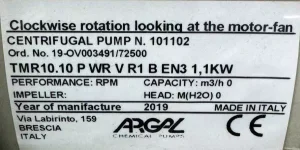

Identification Code ARGAL Magnetic Drive Pump TMR10.10
Technical Data ARGAL Magnetic Drive Pump Type: TMR10.10 P WR V R1 B EN3 1.1 KW
Data Sheet Argal Series TMR and ZMR
Spare Part List Argal TMR10.10 P WR V R1 B EN3 1.1 KW
