WISE Pressure Gauge

wise pressure gauge

Pressure Gauge

Wise Pressure Gauge ซีรีย์ P750 มาพร้อมกับ Diaphragm Seal (ไดอะแฟรม ซีล) ซึ่งเป็นสินค้าคุณภาพดี ใช้งานทนทาน มีให้เลือกหลายรุ่น หลายขนาด สำหรับรุ่น P750 เป็นสินค้าที่สามารถใช้ได้กับอุตสาหกรรม Chemical, Food, Beverage, Biochemical, และ Pharmaceutical

Pressure Gauge Sanitary

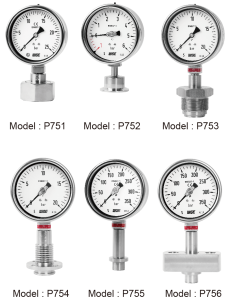

Pressure Gauge Wiseh Model P750 Series
Wise P750 series have diaphragm seal to be combined with a pressure gauge. These series are suitable to be used for the situation where corrosive, contaminated, hot, and viscous pressure mediums are present, and it could be used for a chemical, food, beverage, biochemical, and pharmaceutical industry.

wise pressure guage p750 seires

wise pressure gauge specification

wise pressure gauge features


Pressure Gauge แบบมีหน้าปัดแสดงผล

Wise Display Pressure Gauge P761 P762 และ P763 เป็น Pressure Gauge ที่มาพร้อมกับ Diaphragm Seal (ไดอะแฟรม ซีล) แบบต่างๆ สำหรับคุณสมบัติของสินค้ามีดังต่อไปนี้

Pressure gauge with diaphragm seal P761,P762,P763

  • P761 (Pressure gauge with inline type diaphragm seal)
  • P762 (Pressure gauge with extension type diaphragm seal)
  • P763 (Pressure gauge with pad type diaphragm seal)

pressure gauge model p761pressure gauge model p762pressure gauge model p763

Pressure gauge with diaphragm seal are suitable for the situation where the process medium would corrode the instrument connection and pressure sensing element. Furthermore, this type of gauge is suitable for corrosive, highly viscous, crystallising or hot pressure media. Additionally, it is recommended to be used where the process medium might freeze or solidify the instrument connection and pressure sending element due to the ambient or process temperature change and where the process medium requires the flusing from the system to prevent any contamination.

Standard Features

  • Upper flange (Gauge side): Stainless steel (304SS, 316SS)
  • Diaphragm: 316L SS, Monel, Hastelloy-C Titanium, Tantalum, Nickel, Alloy20
  • Under flange and process flange: Stainless steel (304SS, 304L SS, 316SS, 316L SS) Monel, Hastelloy-C, Titanium, Nickel
  • Option: Diaphragm and under flange are available in PTFE coating Under flange (Process side) are available in purging plug or heating/cooling jacket
  • Dial: White aluminium with black graduations
  • Pointer: Black painted aluminium alloy
